More volume flow on less space

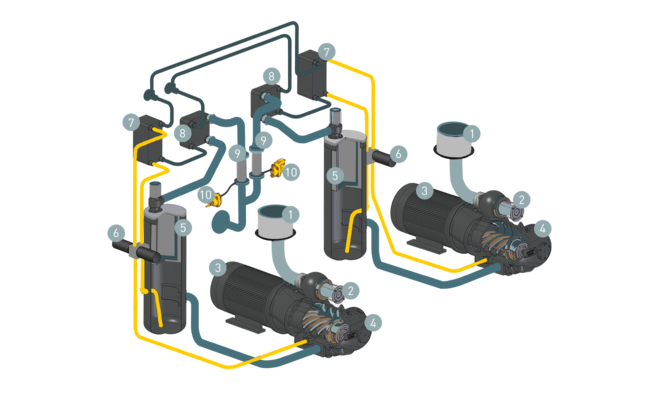

For our HSD series, we integrated two compressorsin a single enclosure. Both units are fully equipped with 1:1 direct drive, SIGMA CONTROL controller and cooling system. This series offers these technical data:
-
Pressure: 8.5, 12 or 15 bar
-
Flow rate: 10.1 – 89 m³/min
You can order HSD systems with or without speed-controlled drive. Due to the high flow rates, they are very well suited for demand-intensive applications in the automotive sector or steel industry.
Your advantages
-
Versatility with minimal space requirements:
Two small compressors in a single enclosure save much space when compared to a single compressor unit with corresponding output capacity. This system optimally adapts to different demand situations, minimising idle times and increasing efficiency.
-
Double dependability:
Each compressor unit can be operated completely independently. In the event of a unit failure, you still have 50 % of your flow rate.
-
Exceptional efficiency:
Furthermore, we already use IE4 motors in HSD models and therefore provide you with even further energy savings.
New compressor models with even higher efficiency
Advantages of HSD compressors include:
- Further enhanced flow-optimised SIGMA profile rotors
- Minimised internal pressure losses
Your advantage: up to 6.5 % less specific power requirement
