Centrifugal separators

Maintenance-free whirlwinds

Kaeser KC centrifugal separators remove condensate at the compressor's compressed air discharge point. They're a must for faultless and energy-efficient functioning of downstream dryers and filters. KC centrifugal separators are equipped with the economical and extremely reliable ECO-DRAIN 31condensate drain – naturally, with test button and alarm contact included. They're also very easy to combine with KAESER FILTERS and can be wall-mounted using optional wall mounts – for highly straightforward installation.

  • Separation rates up to 99 % in the flow rate range of 0.9 to 14.2 m³/min
  • designed for working pressures up to 16 bar
  • with ECO-DRAIN 31 electronic condensate drain
  • with optional wall mounts

Models with flow rates up to 88.5 m³/min, special product variants available in silicon-free design, for working pressure of 45 bar.

Your advantages

  • Comprehensive efficiency:
    Kaeser has optimised the air flow in the KC centrifugal separator using the most advanced flow simulations and measured it as per ISO 12500-4. The results: a swirl insert with an excellent separation rate of up to 99 % – stable over a broad output range and with pressure loss of less than 0.1 bar.
  • Durable and value-retaining
    With a seawater-resistant aluminium enclosure and an additional passivation coating, our centrifugal separators are built to keep on running. The compressed air connections on the enclosure are thus always a perfect fit for our rotary screw compressors.
  • Maintenance-free:
    Kaeser KC centrifugal separators are maintenance-free. Furthermore, the ECO-DRAIN condensate drain is equipped with a service module for highly reliable maintenance.
The perfect partner: the AQUAMAT oil/water separator
AQUAMAT condensate treatment system

Our tip: Take advantage of cost-effective, legally-compliant treatment of condensate before drainage into the regular wastewater system with AQUAMAT oil/water separators.



Product details

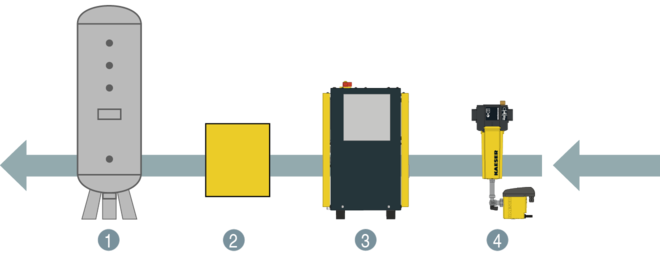

Example of installation in the compressed air station
Centrifugal separator – example installation
  1. Air receiver
  2. Optional filtration
  1. Refrigeration dryer
  2. Centrifugal separator
Technical specifications

Standard version

ModelF9KC F26KC F46KC
Flow rate m³/min 0,9 2,6 4,6
Differential pressure in new condition bar < 0,1 < 0,1 < 0,1
Separating efficiency 20 - 100% vol. % 97 - 99 97 - 99 97 - 99
Working pressure bar 2 - 16 2 - 16 2 - 16
Ambient temperature °C 3 - 50 3 - 50 3 - 50
Inlet temperature °C 3 - 66 3 - 66 3 - 66
Compressed air connectionG ½, G ¾ G ¾, G 1 G 1¼, G 1½, G 2
Weight kg 4,1 4 7,8
Dimensions
W x D x H mm
241 x 225 x 465 241 x 225 x 515 273 x 250 x 535

ModelF83KC F142KC
Flow rate m³/min 8,3 14,2
Differential pressure in new condition bar < 0,1 < 0,1
Separating efficiency 20 - 100% vol. % 97 - 99 97 - 99
Working pressure bar 2 - 16 2 - 16
Ambient temperature °C 3 - 50 3 - 50
Inlet temperature °C 3 - 66 3 - 66
Compressed air connectionG 1¼, G 1½, G 2 G 1¼, G 1½, G 2
Weight kg 8,5 8,5
Dimensions
W x D x H mm
273 x 250 x 620 273 x 250 x 620
