CN C and DN C series high pressure boosters

High pressure boosters for an efficient compressed air supply

This complete system has it all: With a new design featuring a footprint approximately half the size of their predecessors, CN C and DN C series boosters look as good on the inside as they do on the outside. A new component layout not only ensures optimisation of the cooling air flow, but also provides improved maintenance access.

Furthermore, the revised SIGMA CONTROL 2 controller provides new, multiple monitoring and control options with an assortment of interfaces, as well as being fully compatible with master control systems, thereby offering the facility for dynamic control.

On SFC versions of the DN C series, compressor flow rate is matched to the actual air demand of the application in question, which means that only as much energy is consumed as is needed to produce the exact amount of compressed air required.

CN C series performance parameters:

  • 7.5 – 22 kW
  • Initial pressure: 3 – 10 bar
  • Final pressure: 10 – 45 bar
  • Flow rate: 0.8 – 8.0 m³/min

DN C series performance parameters:

  • 22 – 45 kW
  • Initial pressure: 3 – 10 bar
  • Final pressure: 10 – 45 bar
  • Flow rate: 2.26 – 19.60 m³/min

Optional features:

High pressure boosters are available as air or water-cooled versions. CN C series high-pressure boosters are delivered as standard with air-cooling. A version equipped for nitrogen compression, sealed to prevent outside air from penetrating, is also available (N2 version).

Applications:

PET bottle production, process air applications, nitrogen generation, high pressure for testing facilities, e.g. for pressure tests, burst pressure tests, and pulse tests (on brakes, coolers, etc.).

Your benefits:

  • Compact footprint:
    This unique, space-saving system is compact yet powerful, therefore no need to compromise on performance, reliability or energy efficiency!
  • Minimal installation effort:
    DN C and CN C boosters are delivered ready for connection to a power supply. The systems can be configured for a large number of applications, including self-monitoring applications.
  • Service cost savings:
    due to a new design offering access from the front of the unit. This configuration was made possible thanks to a new component layout, which also reduces the effort required for maintenance tasks, such as when performing belt changes.
Energy cost savings
Life-cycle costs

High-quality premium efficiency electric motors deliver unparalleled efficiency for remarkably low power consumption. Their low operating temperature provides an added advantage.



Product details

New design for improved user-friendliness, greater efficiency and flexibility
DN C series compact booster package (back)
  • Extended service life:
    The motor and airend have been decoupled from the rest of the machine. The control cabinet, cooler, fan and pipework are therefore significantly less affected by vibrations.
  • Optimised access for maintenance work:
    Side view with air cooler installed – better access once again here thanks to easily removable panel
  • Improvement for maintenance work:
    Belt change, solenoid valve servicing (nitrogen version) or replacement of dirt trap on inlet valve
Example layout

Example of compressed air station featuring high pressure booster

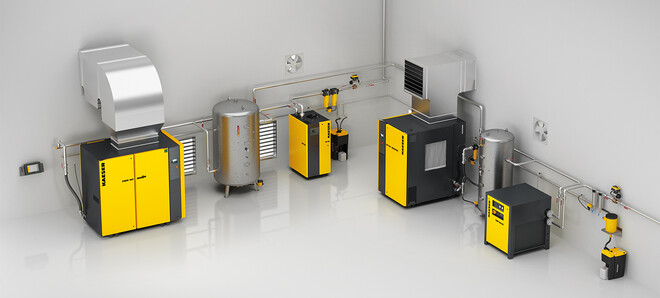

Compressed air station with compact DN C series high pressure booster from Kaeser Kompressoren.
Design layout of a high pressure booster

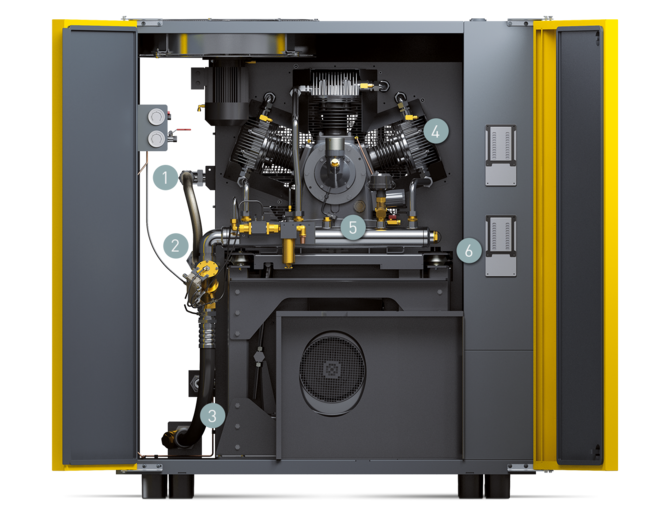

DN C series compact booster package components (front)
  1. Flexible hose line, final pressure side
  2. Check valve between collecting pipe and aftercooler
  3. Flexible hose line, initial pressure side
  1. Redesigned cylinder heads
  2. Large air collecting pipe for reduced pulsations
  3. Damping element
Technical specifications CN 22C

Standard version

ModelCN 22C 5/25 bar CN 22C 7,5/25 bar CN 22C 7,5/35 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 35
Flow rate complete system at working pressure m³/min 2,54 4,17 3,68
Compressor block / airend speed rpm 1.235 1.235 1.235
Number of pistons 2 2 2
Nominal motor output kW 22 22 22
Sound pressure level dB(A) 75 75 75
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 920 920 920

ModelCN 22C 10/25 bar CN 22C 10/35 bar CN 22C 10/45 bar
Inlet pressure bar 10 10 10
Outlet pressure bar 25 35 45
Flow rate complete system at working pressure m³/min 5,79 5,31 4,83
Compressor block / airend speed rpm 1.235 1.235 1.235
Number of pistons 2 2 2
Nominal motor output kW 22 22 22
Sound pressure level dB(A) 75 75 75
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 920 920 920

Technical specifications CN 15C

Standard version

ModelCN 15C 5/25 bar CN 15C 7,5/25 bar CN 15C 7,5/35 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 35
Flow rate complete system at working pressure m³/min 2,54 4,17 3,04
Compressor block / airend speed rpm 1.235 1.235 985
Number of pistons 2 2 2
Nominal motor output kW 15 15 15
Sound pressure level dB(A) 74 74 74
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 920 920 920

ModelCN 15C 10/25 bar CN 15C 10/35 bar CN 15C 10/45 bar
Inlet pressure bar 10 10 10
Outlet pressure bar 25 35 45
Flow rate complete system at working pressure m³/min 5,79 4,36 3,63
Compressor block / airend speed rpm 1.235 985 890
Number of pistons 2 2 2
Nominal motor output kW 15 15 15
Sound pressure level dB(A) 74 74 74
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 920 920 920

Technical specifications CN 11C

Standard version

ModelCN 11C 5/25 bar CN 11C 7,5/25 bar CN 11C 7,5/35 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 35
Flow rate complete system at working pressure m³/min 2,09 3,41 2,47
Compressor block / airend speed rpm 985 985 795
Number of pistons 2 2 2
Nominal motor output kW 11 11 11
Sound pressure level dB(A) 73 73 73
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 920 920 920

ModelCN 11C 10/25 bar CN 11C 10/35 bar
Inlet pressure bar 10 10
Outlet pressure bar 25 35
Flow rate complete system at working pressure m³/min 4,73 3,29
Compressor block / airend speed rpm 985 750
Number of pistons 2 2
Nominal motor output kW 11 11
Sound pressure level dB(A) 73 73
Compressed air connection, inletG 1 G 1
Compressed air connection, outletG 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 920 920

Technical specifications CN 7C

Standard version

ModelCN 7C 5/25 bar CN 7C 7,5/25 bar CN 7C 7,5/35 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 35
Flow rate complete system at working pressure m³/min 1,26 2 1,62
Compressor block / airend speed rpm 1.250 1.250 1.120
Number of pistons 2 2 2
Nominal motor output kW 7,5 7,5 7,5
Sound pressure level dB(A) 71 71 71
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 790 790 790

ModelCN 7C 10/25 bar CN 7C 10/35 bar CN 7C 10/45 bar
Inlet pressure bar 10 10 10
Outlet pressure bar 25 35 45
Flow rate complete system at working pressure m³/min 2,74 2,05 1,75
Compressor block / airend speed rpm 1.250 1.000 900
Number of pistons 2 2 2
Nominal motor output kW 7,5 7,5 7,5
Sound pressure level dB(A) 71 71 71
Compressed air connection, inletG 1 G 1 G 1
Compressed air connection, outletG 1 G 1 G 1
Dimensions
W x D x H mm
1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890 1.210 x 1.590 x 1.890
Weight kg 790 790 790

Technical specifications DN 30C

Standard version

ModelDN 30C 5/25 bar DN 30C 7,5/25 bar DN 30C 7,5/35 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 35
Flow rate complete system at working pressure m³/min 6,11 8,92 7,02
Compressor block / airend speed rpm 1.139 1.095 929
Number of pistons 3 3 3
Nominal motor output kW 30 30 30
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.470 1.470 1.470

ModelDN 30C 10/25 bar DN 30C 10/45 bar DN 30C 13/20 bar
Inlet pressure bar 10 10 13
Outlet pressure bar 25 45 20
Flow rate complete system at working pressure m³/min 11,35 6,98 16,74
Compressor block / airend speed rpm 1.034 1.034 1.139
Number of pistons 3 3 3
Nominal motor output kW 30 30 30
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.470 1.470 1.470

ModelDN 30C 13/45 bar
Inlet pressure bar 13
Outlet pressure bar 45
Flow rate complete system at working pressure m³/min 9,53
Compressor block / airend speed rpm 1.034
Number of pistons 3
Nominal motor output kW 30
Sound pressure level dB(A) 78
Compressed air connection, inletG 2
Compressed air connection, outletG 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960
Weight kg 1.470

Technical specifications DN 22C

Standard version

ModelDN 22C 5/25 bar DN 22C 7,5/25 bar DN 22C 7,5/30 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 30
Flow rate complete system at working pressure m³/min 4,75 6,91 6,16
Compressor block / airend speed rpm 1.315 1.227 1.139
Number of pistons 3 3 3
Nominal motor output kW 22 22 22
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.370 1.370 1.370

ModelDN 22C 7,5/35 bar DN 22C 10/25 bar DN 22C 10/40 bar
Inlet pressure bar 7,5 10 10
Outlet pressure bar 35 25 40
Flow rate complete system at working pressure m³/min 5,32 9,09 5,99
Compressor block / airend speed rpm 1.034 1.183 876
Number of pistons 3 3 3
Nominal motor output kW 22 22 22
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.370 1.370 1.370

ModelDN 22C 13/20 bar DN 22C 13/30 bar
Inlet pressure bar 13 13
Outlet pressure bar 20 30
Flow rate complete system at working pressure m³/min 13,19 10,27
Compressor block / airend speed rpm 1.271 1.034
Number of pistons 3 3
Nominal motor output kW 22 22
Sound pressure level dB(A) 78 78
Compressed air connection, inletG 2 G 2
Compressed air connection, outletG 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.370 1.370

Technical specifications DN 37C

Standard version

ModelDN 37C 5/20 bar DN 37C 7,5/30 bar DN 37C 10/25 bar
Inlet pressure bar 5 7,5 10
Outlet pressure bar 20 30 25
Flow rate complete system at working pressure m³/min 7,36 9,39 12,98
Compressor block / airend speed rpm 1.315 1.183 1.183
Number of pistons 3 3 3
Nominal motor output kW 37 37 37
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.500 1.500 1.500

ModelDN 37C 10/40 bar DN 37C 13/20 bar DN 37C 13/35 bar
Inlet pressure bar 10 13 13
Outlet pressure bar 40 20 35
Flow rate complete system at working pressure m³/min 9,96 18,59 13,57
Compressor block / airend speed rpm 981 1.271 981
Number of pistons 3 3 3
Nominal motor output kW 37 37 37
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.500 1.500 1.500

Technical specifications DN 45C

Standard version

ModelDN 45C 7,5/25 bar DN 45C 7,5/30 bar DN 45C 10/25 bar
Inlet pressure bar 7,5 7,5 10
Outlet pressure bar 25 30 25
Flow rate complete system at working pressure m³/min 10,74 9,75 14,41
Compressor block / airend speed rpm 1.315 1.227 1.315
Number of pistons 3 3 3
Nominal motor output kW 45 45 45
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.410 1.510 1.510

ModelDN 45C 10/35 bar DN 45C 13/20 bar DN 45C 13/45 bar
Inlet pressure bar 10 13 13
Outlet pressure bar 35 20 45
Flow rate complete system at working pressure m³/min 12,9 19,21 13,77
Compressor block / airend speed rpm 1.227 1.315 1.034
Number of pistons 3 3 3
Nominal motor output kW 45 45 45
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.510 1.510 1.510

Technical specifications DN 45C SFC

Standard version

ModelDN 45C SFC 7,5/25 bar DN 45C SFC 7,5/30 bar DN 45C SFC 10/25 bar
Inlet pressure bar 7,5 7,5 10
Outlet pressure bar 25 30 25
Flow rate complete system at working pressure m³/min 10,74 9,75 14,41
Compressor block / airend speed rpm 1.315 1.227 1.315
Number of pistons 3 3 3
Nominal motor output kW 45 45 45
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.510 1.510 1.510

ModelDN 45C SFC 10/35 bar
Inlet pressure bar 10
Outlet pressure bar 35
Flow rate complete system at working pressure m³/min 12,9
Compressor block / airend speed rpm 1.227
Number of pistons 3
Nominal motor output kW 45
Sound pressure level dB(A) 78
Compressed air connection, inletG 2
Compressed air connection, outletG 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960
Weight kg 1.510

Technical specifications DN 37C S SFC

Standard version

ModelDN 37C S SFC 7,5/25 bar DN 37C S SFC 7,5/30 bar DN 37C S SFC 10/25 bar
Inlet pressure bar 7,5 7,5 10
Outlet pressure bar 25 30 25
Flow rate complete system at working pressure m³/min 6,66 6,42 9,09
Compressor block / airend speed rpm 1.183 1.183 1.183
Number of pistons 3 3 3
Nominal motor output kW 37 37 37
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.500 1.500 1.500

ModelDN 37C S SFC 10/40 bar
Inlet pressure bar 10
Outlet pressure bar 40
Flow rate complete system at working pressure m³/min 8,02
Compressor block / airend speed rpm 1.139
Number of pistons 3
Nominal motor output kW 37
Sound pressure level dB(A) 78
Compressed air connection, inletG 2
Compressed air connection, outletG 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960
Weight kg 1.500

Technical specifications DN 37C L SFC

Standard version

ModelDN 37C L SFC 5/20 bar DN 37C L SFC 7,5/30 bar DN 37C L SFC 10/25 bar
Inlet pressure bar 5 7,5 10
Outlet pressure bar 20 30 25
Flow rate complete system at working pressure m³/min 7,36 9,39 12,98
Compressor block / airend speed rpm 1.315 1.183 1.183
Number of pistons 3 3 3
Nominal motor output kW 37 37 37
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.500 1.500 1.500

ModelDN 37C L SFC 10/30 bar
Inlet pressure bar 10
Outlet pressure bar 30
Flow rate complete system at working pressure m³/min 12,21
Compressor block / airend speed rpm 1.139
Number of pistons 3
Nominal motor output kW 37
Sound pressure level dB(A) 78
Compressed air connection, inletG 2
Compressed air connection, outletG 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960
Weight kg 1.500

Technical specifications DN 30C S SFC

Standard version

ModelDN 30C S SFC 5/25 bar DN 30C S SFC 7,5/25 bar DN 30C S SFC 7,5/35 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 35
Flow rate complete system at working pressure m³/min 4,07 6,4 5,93
Compressor block / airend speed rpm 1.139 1.139 1.139
Number of pistons 3 3 3
Nominal motor output kW 30 30 30
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.470 1.470 1.470

ModelDN 30C S SFC 10/25 bar DN 30C S SFC 10/35 bar DN 30C S SFC 10/40 bar
Inlet pressure bar 10 10 10
Outlet pressure bar 25 35 40
Flow rate complete system at working pressure m³/min 8,75 8,26 8,02
Compressor block / airend speed rpm 1.139 1.139 1.139
Number of pistons 3 3 3
Nominal motor output kW 30 30 30
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.470 1.470 1.470

Technical specifications DN 30C L SFC

Standard version

ModelDN 30C L SFC 5/25 bar
Inlet pressure bar 5
Outlet pressure bar 25
Flow rate complete system at working pressure m³/min 6,11
Compressor block / airend speed rpm 1.139
Number of pistons 3
Nominal motor output kW 30
Sound pressure level dB(A) 78
Compressed air connection, inletG 2
Compressed air connection, outletG 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960
Weight kg 1.470

Technical specifications DN 22C SFC

Standard version

ModelDN 22C SFC 5/25 bar DN 22C SFC 7,5/25 bar DN 22C SFC 7,5/30 bar
Inlet pressure bar 5 7,5 7,5
Outlet pressure bar 25 25 30
Flow rate complete system at working pressure m³/min 4,75 6,91 6,16
Compressor block / airend speed rpm 1.315 1.227 1.139
Number of pistons 3 3 3
Nominal motor output kW 22 22 22
Sound pressure level dB(A) 78 78 78
Compressed air connection, inletG 2 G 2 G 2
Compressed air connection, outletG 1½ G 1½ G 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960 1.280 x 1.830 x 1.960
Weight kg 1.370 1.370 1.370

ModelDN 22C SFC 10/25 bar
Inlet pressure bar 10
Outlet pressure bar 25
Flow rate complete system at working pressure m³/min 9,09
Compressor block / airend speed rpm 1.183
Number of pistons 3
Nominal motor output kW 22
Sound pressure level dB(A) 78
Compressed air connection, inletG 2
Compressed air connection, outletG 1½
Dimensions
W x D x H mm
1.280 x 1.830 x 1.960
Weight kg 1.370
