Combination dryers


HYBRITEC – Cut costs with the best of both worlds

HYBRITEC compressed air dryers (*) combine the extremely low pressure dew pointsof desiccant dryers with the energy-saving functionalityof modern refrigeration dryers. The result: outstanding flexibility and huge energy cost savings. This means that the desiccant dryer can simply be switched off during periods where more moderate DTPs are required – such as in the summer months.

  • Reliably dry, cost-effective compressed air from 12 to 150 m³/min (DTE - DTL series models)
  • PDP level can be set between −40 °C and +3 °C
  • Numerous configuration options
  • Optional special features (e.g. working pressure up to 16 bar, integration within container module, automatic summer/winter mode switching)

Your advantages

  • Maximum energy efficiency:
    Kaeser combination dryers only require some 50 % of the energy required by heat regenerated desiccant dryers and – incredibly – just 20 % of the energy used by heatless regenerated units.
  • Cost-effective and precise, individual configuration options:
    Combination dryers can be configured for virtually any application from standard models in our dryer range – a solution that saves money and ensures outstanding operational reliability.
  • Extremely low service costs:
    The lower load on the desiccant dryer within HYBRITEC dryers means desiccant replacement intervals can be as infrequent as every 10 years – and moreover, they require significantly lower quantities.

* This dryer series contains fluorinated greenhouse gases. All models contain refrigerant R-513A (GWP 631).

The perfect partner: the AQUAMAT oil/water separator
AQUAMAT condensate treatment system

Our tip: Take advantage of cost-effective, legally-compliant treatment of condensate before drainage into the regular wastewater system with AQUAMAT oil/water separators.



Product details

Design and Function

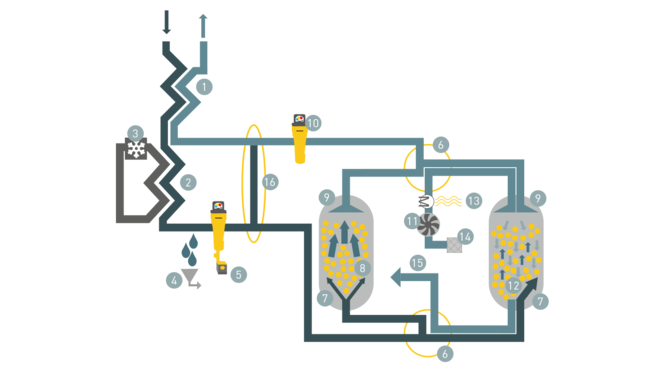

Components and function of a HYBRITEC system
  1. Air / air heat exchanger
  2. Refrigerant/air heat exchanger
  3. Condensate separators
  4. Refrigerant compressor
  5. Condensate separation system with automatic condensate drainage
  6. Micro-filter with condensate drain
  7. Switch-over valve
  8. Desiccant bed: Drying
  1. Outlet diffuser
  2. Particulate filter
  3. Regeneration air blower
  4. Desiccant bed: Regeneration
  5. Regeneration air heating
  6. Regeneration air inlet
  7. Regeneration air outlet
  8. Bypass line
Technical specifications

The technical specifications can be found in this brochure:
